145.160 D-Star
	The 145.160 D-Star repeater is located on the Prudential tower in Boston. It is owned by Bob Stone, N1KMA, of West Newfield, ME. It is at an MMRA location under an arrangement where MMRA is the sponsor of the repeater and the system runs under the MMRA's W1MRA callsign. If you have a D-Star radio, set your RX frequency to 145.160 with a -600 KHz offset, set the RPT1 callsign to "W1MRA C" (two spaces before the C). In the future, this will repeater will have a D-STAR gateway. To be ready for that day, set your RPT2 callsign to W1MRA G" (two spaces before the G). Currently, this will have no effect. When the gateway is installed you will be all set to use it. Like all current D-Star repeaters, the system is an Icom ID-RP2000V and ID-RP2C units. The TX power is 25W. The repeater was originally installed at the MMRA's MRE location on September 15, 2008. It was moved to the Pru on September 26, 2009.
^ W1BRI beside the Hustler G6-144B antenna (above) Looking down on the 927.0625 site from the 145.16 site(right) >
927.0625

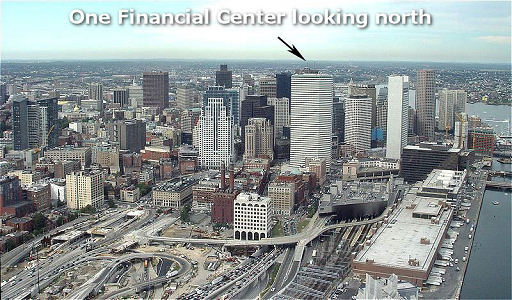

The MMRA 927.0625 Boston repeater is located atop One Financial Center in Boston. It is at the site of the former WA1PBJ UHF repeater.	The repeater is full-time linked to the New England Reflector 900MHz channel - IRLP 9125. It will take a brief break from this on Tuesday nights at 8PM when it will join the MMRA network for the club's weekly net.
The entire 927.0625 repeater was put together and installed at zero club expense. The following people and organizations are to be commended for their outstanding contributions of time and/or money: K1RJZ donated repeater and controller, recapped MSF-5000 recapping, initial tune-up N1OTY donated 200ft of 1 5/8" Heliax & connectors (RX) and delivered to Broadcast Towers in Bridgewater Broadcast Towers donate 60ft 7/8" Heliax with connectors (TX) Heliax to be elevated to roof-level via window washer machine K1WUK donate RX antenna, Heliax jumpers, Polyphasers W1BRI tune-up duplexer, later to be turned onto TX and RX filters N3HFK took over repeater prep and was lead on recapping, physical reconfigurations and final tweak. Anything to do with the local IRLP interface and setup Integrate S-COM 7K controller K1IW Program S-COM 7K controller N3HFK, K1IW, W1BRI, K1RJZ, N1ZZN, KC1HO, N1JFU Sunday repeater "tune-up party" at N3HFK. N3HFK, K1IW, W1BRI, K1RJZ Lug MSF-5000 to roof penthouse via three flights of fire escape (350 lbs)
The tune-up party crew(K1RJZ is taking the photo)
Which photo has more antennas?
The install crew (K1RJZ is [again] taking the photo)

See the GEMOTO page about this repeater
