Mendon

146.610

The Mendon repeater houses the 146.61 repeater. Like most MMRA repeaters, the transmitter/receiver is a GE Mastr II and the controller is an SCOM 7330.

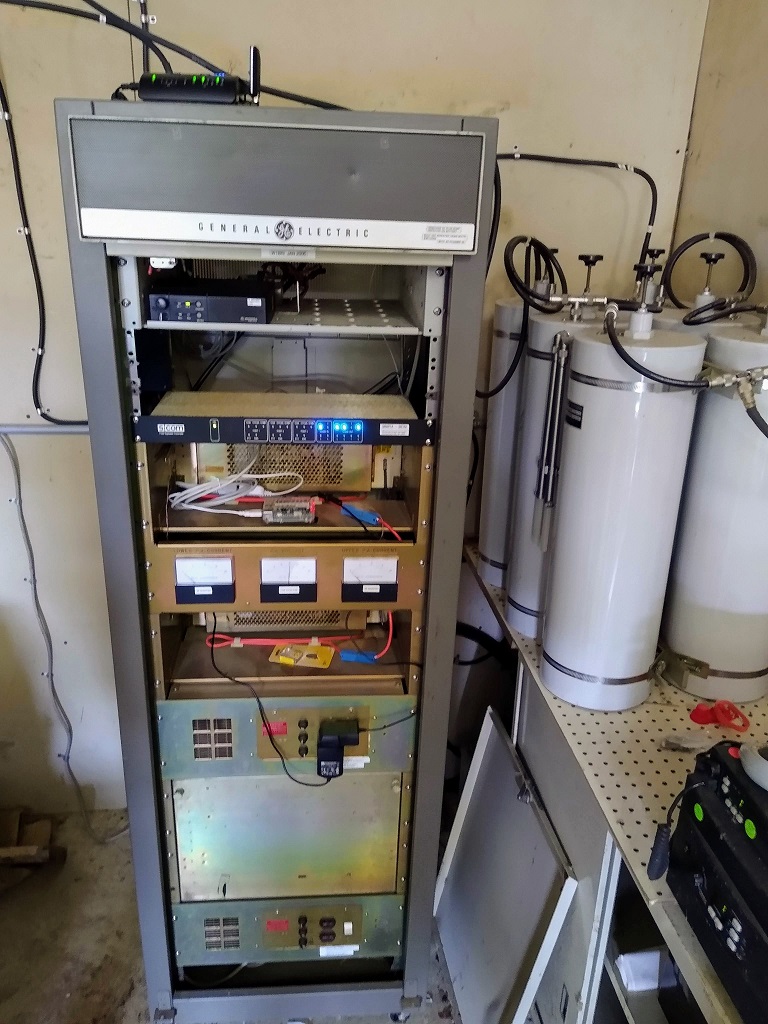

Here is a closeup of the repeater. On top of the cabinet is a Cradlepoint 1200B Mifi device that provides the site with internet access using 4G cellular. On the first shelf is the Motorola M120 link transceiver, used to link to HUB1 or HUB2 The next position down is the SCOM 7330 controller and below that is the Raspberry Pi - this has a serial connection to the controller. Below all this is the GE Mastr II equipment. To the right of the rack, you can see the 2m duplexer.
